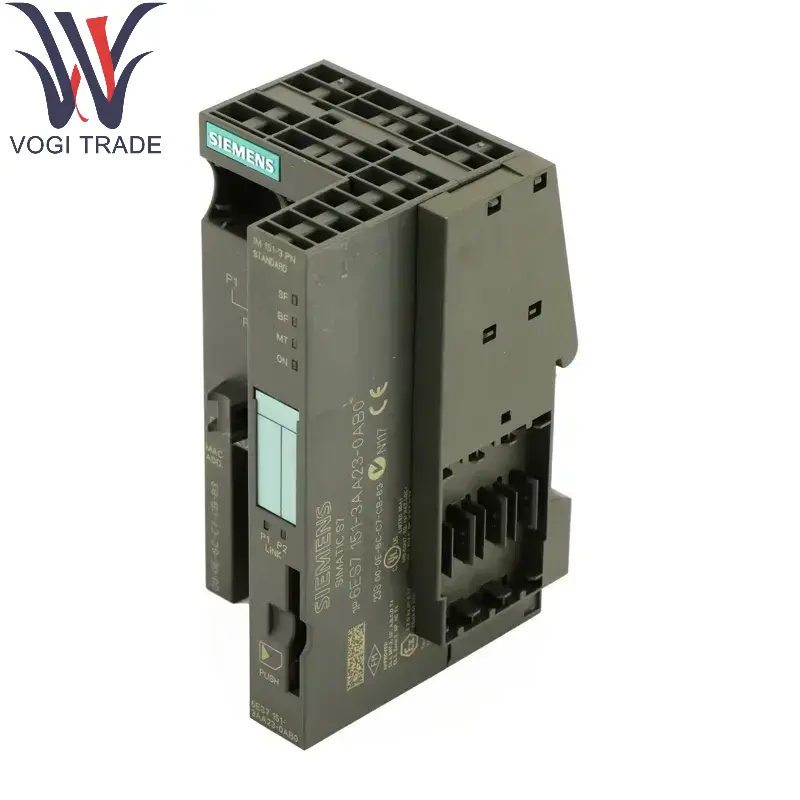

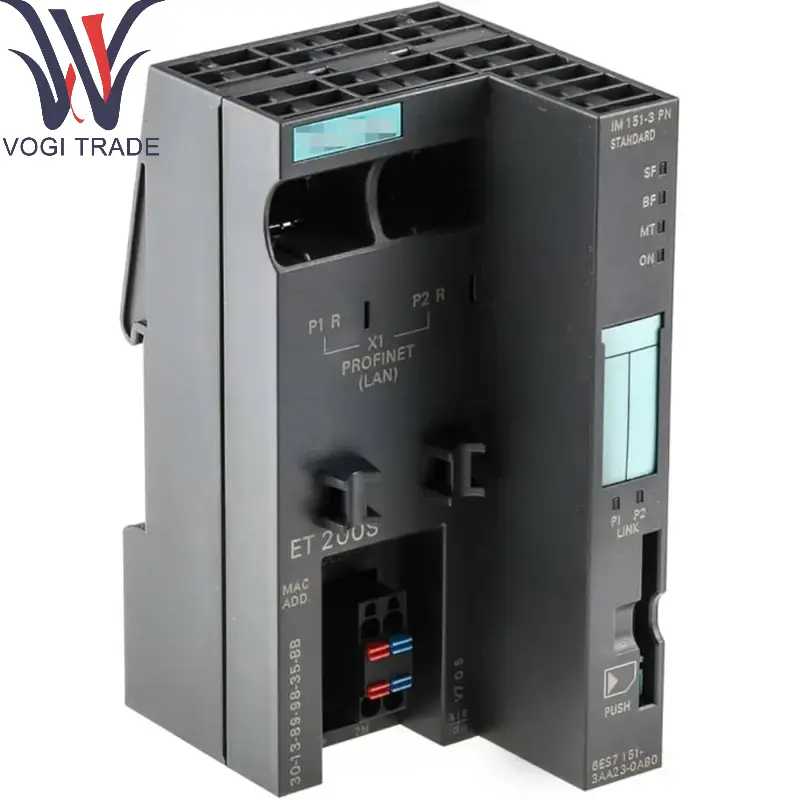

Thương hiệu: SiemensMô tả: Mô -đun giao diệnĐiều kiện: Thương hiệu mớiGiấy chứng nhận: Thư bảo hành báo cáo kiểm tra COOBảo hành: 1 nămHàng tồn kho Qty: 1Thời hạn thanh toán: T/T.Cảng vận chuyển: Thâm QuyếnSiemens 6ES7151-3AA23-0AB0 SIMATIC DP, Mô-đun giao diện IM 151-3 PN ST cho tốc độ chuyển giao ET 200S tối đa 100 Mbps. Có thể kết nối 63 công suất, mô -đun khởi động điện tử hoặc động cơ lên đến 2 m.
|
Manufacture |
Siemens |
|
Model Number |
6ES7151-3AA23-0AB0 |
|
Catalog |
SIMATIC ET 200S |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
6.0cm×11.95cm×7.5cm |
|
Packing Dimension |
8.0cm×13.95cm×9.5cm |
|
Weight |
0.201kg |
Product Description and Introduction
Function:
16-channel digital input (DI),Siemens 6ES7151-3AA23-0AB0 supports 24V DC signals.
High Feature, suitable for high-precision, fast-response industrial applications.
Modular design, hot-swappable, easy to maintain and expand.
Integrated short-circuit and reverse polarity protection to enhance system reliability.
Product Details
Key Parameters
Input voltage: 24V DC (rated range 19.2V–28.8V).
Input current: typical 2mA (per channel).
Filter time: configurable (0.1ms/0.8ms/3.2ms/12.8ms), to meet different signal frequency requirements.
Isolation: No isolation between channels, but optoelectronic isolation between channel groups and backplane bus.
Diagnostic function: Siemens 6ES7151-3AA23-0AB0 supports disconnection, short circuit, overload diagnosis, and LED indication of faults.
Connection method: Connected through Base Unit (such as BU15-P16+A0+2D), using spring clamping technology.
Communication and compatibility
Bus interface: PROFINET (need to be used with interface modules such as IM 155-6PN).
Protocol support: PROFI safe (optional, safety module required).
Module width: 15mm, compact design saves space.
Environmental conditions
Operating temperature: -20°C to +60°C.
Protection level: IP20 (need to be installed in a control cabinet).
Application areas
Industrial automation: Siemens 6ES7151-3AA23-0AB0 used for digital signal acquisition in PLC control systems (such as buttons, sensors, limit switches, etc.).
Discrete manufacturing: Equipment status monitoring of automobiles and electronic assembly lines.
Process control: cooperate with ET 200SP system to realize distributed I/O deployment.
Safety system: expandable safety modules (such as F-DI) for safety-critical applications.
Advantages and features
Modular expansion: Siemens 6ES7151-3AA23-0AB0 supports flexible configuration of ET 200SP system.
Quick installation: modules can be replaced without tools.
High reliability: industrial-grade design, strong anti-electromagnetic interference (EMC) capability.
TIA integration: fully compatible with Siemens TIA Portal for easy programming and diagnosis.
Supporting components
Base Unit: such as Siemens 6ES7151-3AA23-0AB0 (for 16-channel modules).
Interface module: such as 6ES7155-6AU00-0BN0 (PROFINET interface).
Power supply module: needs to be matched with system power supply (such as PM 24V DC).
